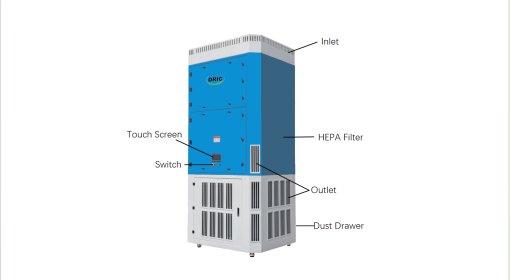

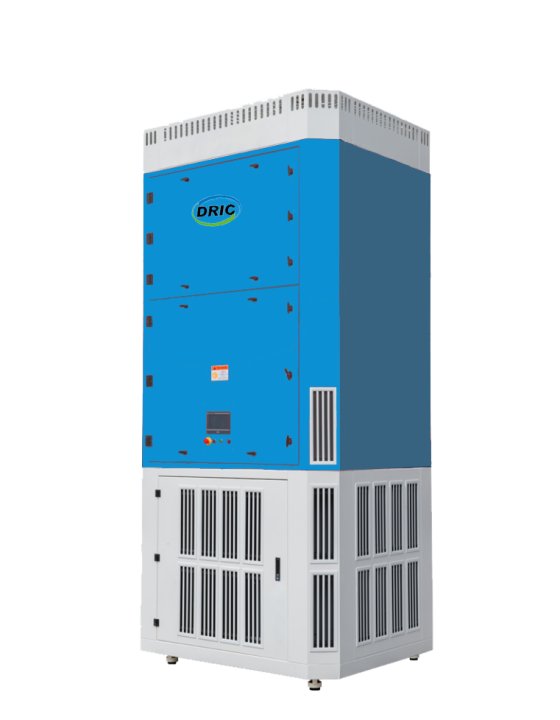

Fume Filter Extraction Tower
DRIC fume filter extraction tower is designed for the overall management of dust in factory spaces. It is suitable for a variety of complex working conditions and does not require the installation of pipelines. It can absorb dust 360°, with the longest air supply reach of up to 15m. Additionally, it employs intelligent variable frequency control technology, making it simple to operate, energy-saving, and electricity-saving.
Overview
Features
Without pipe for complex working conditions
Intelligent control technology for electricity-saving
Dust removal area: 200-400 ㎡ (1 set)
If you need more details of this fume extraction filter tower, please read The Guide of Fume Extraction Tower
Application
*If you need our customer's case, please click here
Dric air fume extraction tower can be used for whole workshop fume extraction. It is a highly effective solution for capturing and treating fumes generated from various industrial processes within a workshop.
Technical Data
Model | LW-C-1609X | LW-C-1608S |
 |  | |
Approximate Size (W*L*H) | 1700*1400*3790 mm | 1400*1260*3790 mm |
Process Ability | 16000m³/h | 12000m³/h |
| Filter Area | 243 ㎡ | 128㎡ |
| Noise | ≤80dB | ≤80dB |
| Motor Power | 15Kw | 15Kw |
Request Quote
